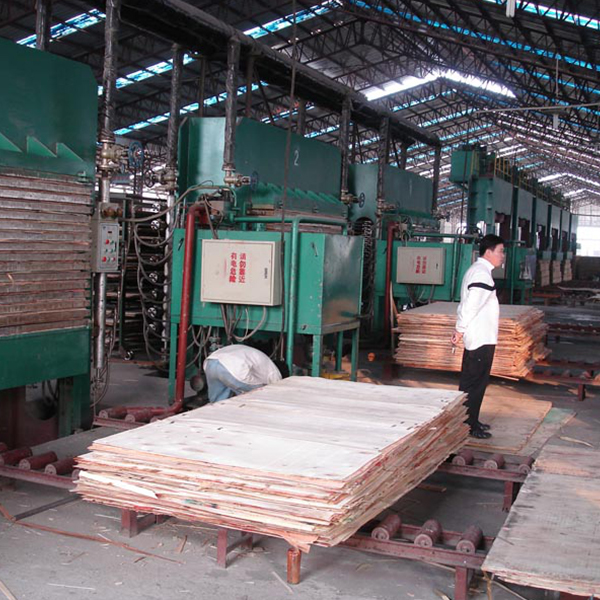

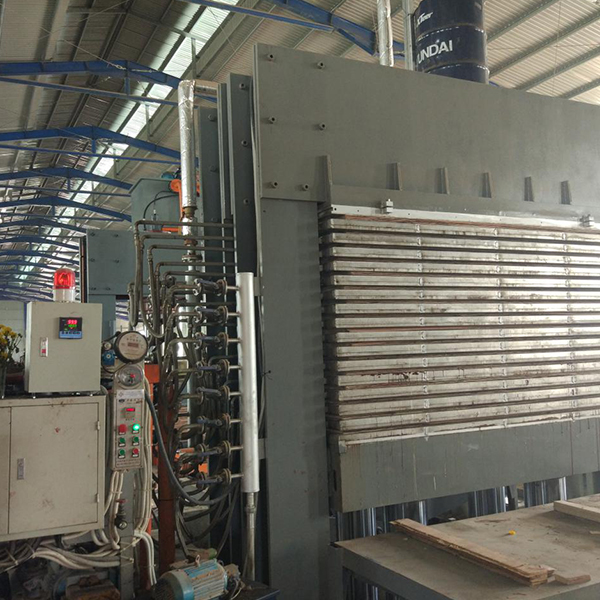

PLYWOOD HOT PRESS MACHINE
Date: 2020-01-15 14:44
View:
About us:
CHINA XINRUNDE COMPANY is a technology company serving the wood-based panel industry worldwide. Founded in 1989 year and located in worlds biggest wood-based panel production base -- LINYI City, which is famous for manufacturing all kinds of veneer, plywood, blockboard, particle board, LVL, MDF,HDF etc.. Thanks

+86-15969943322
Jasonqiao@xrdplymachine.com


Detailed introduction



Brief instructions
1. The machine adopts a combined frame design and is welded and processed with national standard steel. The structure is reasonable, the force points are strictly calculated, the rigidity is good, the bearing pressure is large, and the deformation and stability are high;
2. Microcomputer control, high degree of automation, strong reliability, easy adjustment and long service life;
3. The hydraulic control system adopts high-quality hydraulic parts, which can pressurize quickly and accurately, and the work efficiency is high;
4. Complete specifications and models can be designed according to user requirements.
5. This machine is the main equipment for producing plywood and film faced plywood.



Technical specifications:

Machine model BY214×8/6-10IId
Nominal gross pressure 5000KN/500Tons
Plywood in-feeding direction Horizontal
Layer Counting   10layers
Distance between hot platens 90mm
Numbers of hot platens 11Pcs
Dimension of Hot Platens 2700×1370×52 mm
Numbers of Cylinder 2Pcs
Diameter of Cylinder Φ400mm MADE IN WUXI CITY
Stroke of Cylinder 1000mm
Pressurization ≤25 Mpa
Empty Closing Time 11S
Low Pressure Pump Flowing 2X355L/min
Allowed Pressure ≤5Mpa
Power 11Kw x2
High Pressure Pump Flowing About 35L/min
Power 7.5 kw
Pressure of Unit Plate Blank 21Kgf/cm2
Dimensions of The Board 2560×1280mm
Machine overall Dimensions 4000×1370×3600 mm
